Cloud Integrations

This section is about multiple applications communicating with each other.

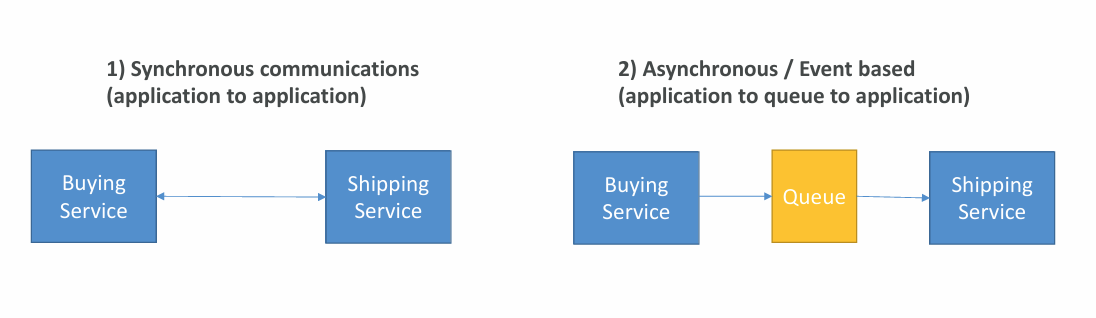

1. Synchronous communication (application to application)
   • Can be problematic if there are sudden spikes of traffic
2. Asynchronous / Event-based communication (application to queue to application)
   • It is called decoupling of applications
     • SQS: queue model
     • SNS: pub / sub model
     • Kinesis: real-time data streaming model
   • Those services can scale independently from our application

SQS #

SQS = Simple Queue Service. #

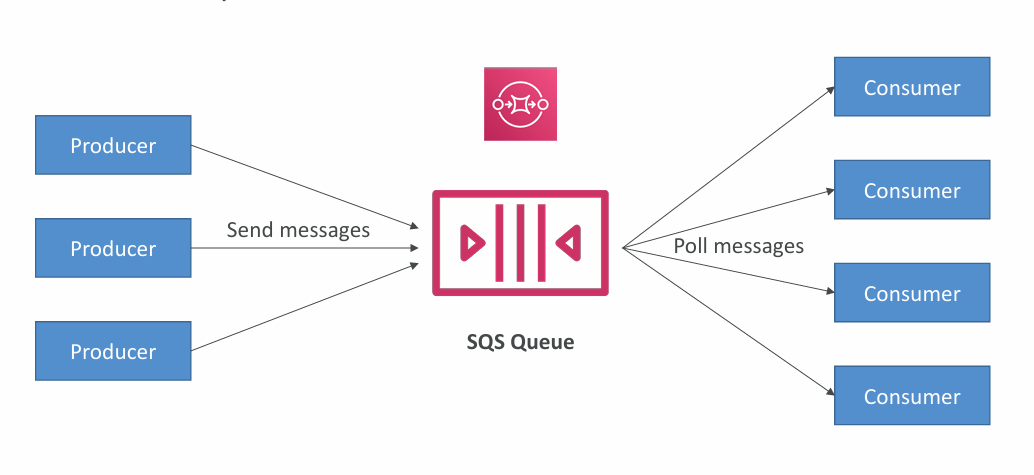

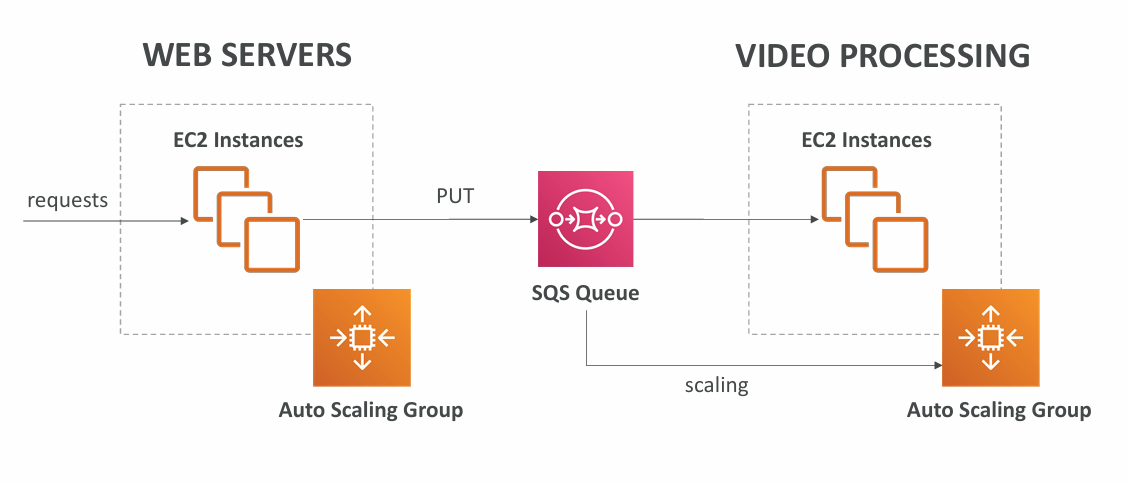

SQS - Standard Queue #

• Oldest AWS offering (over 10 years old)
• Fully managed, serverless service used to decouple applications
• Sales from 1 message per second to 10,000s per second
• Default messages retention: 4 days, maximum 14 days
• No limit to how many messages can be in the queue
• Messages are deleted after they’re read by consumers (applications)
• Low latency
• Consumers share the work to read messages and scale horizontally

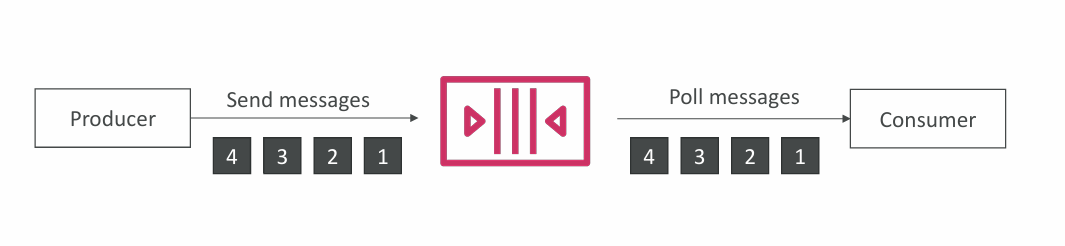

SQS - FIFO Queue #

FIFO = First in First Out (ordering of messages in the queue) #

Amazon Kinesis #

Kinesis = real-time big data streaming. #

Managed service to collect, process and analyze real-time streaming data at any scale.

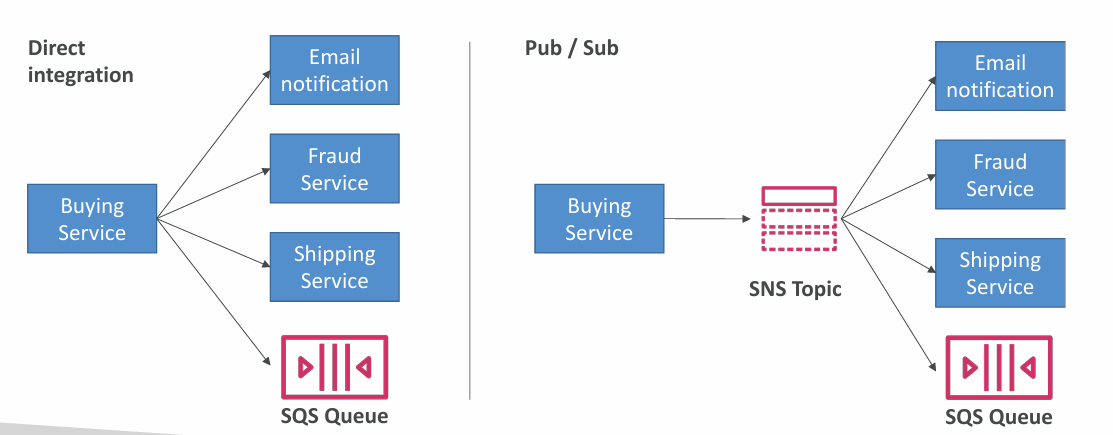

Amazon SNS #

SNS = Simple Notification Service. #

SNS is sending one message to multiple receivers.

• The “event publishers” only sending message to one SNS topic
• As many “event publishers” as we want to listen to the SNS topic notifications
• Each subscriber to the topic will get all the messages
• Up to 12,500,000 subscriptions per topic, 100,000 topics limit

Amazon MQ #

SQS and SNS are “cloud-native” services. Traditional applications running from on-premises may use open protocols, such as:

• MQTT
• AMQP
• STOMP
• Openwire
• WSS

When migrating to the cloud, instead of re-engineering the application to use SQS and SNS, Amazon MQ can be used instead.

Amazon MQ is a managed message broker service for:

• RabbitMQ

• Active MQ

• Amazon MQ doesn’t scale as much as SQS / SNS

• Amazon MQ runs on servers, can run in Multi-AZ with failover

• Amazon MQ has both - queue feature (~SQS) and topic features (~SNS)

Summary #

• SQS
  • Queue service in AWS
  • Multiple Producers, messages kept up to 14 days
  • Multiple Consumers share the read and delete messages when done
  • Used to decouple applications in AWS

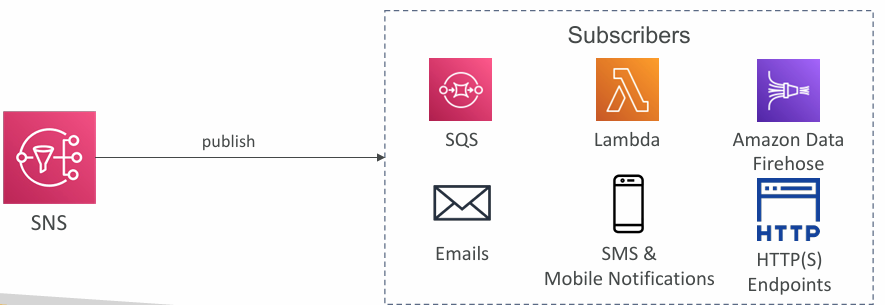

• SNS
  • Notification service in AWS
  • Subscribers:
    • Email
    • Lambda
    • SQS
    • HTTP
    • Mobile
    • Others
  • Multiple Subscribers, sending all messages to all of them
  • No message retention
• Kinesis
  • Real-time data streaming
• Amazon MQ
  • Managed message broker for Active MQ and Rabbit MQ in the cloud (MQTT, AMQP protocols)
